Manual Butterfly Valve
Manual Butterfly Valve

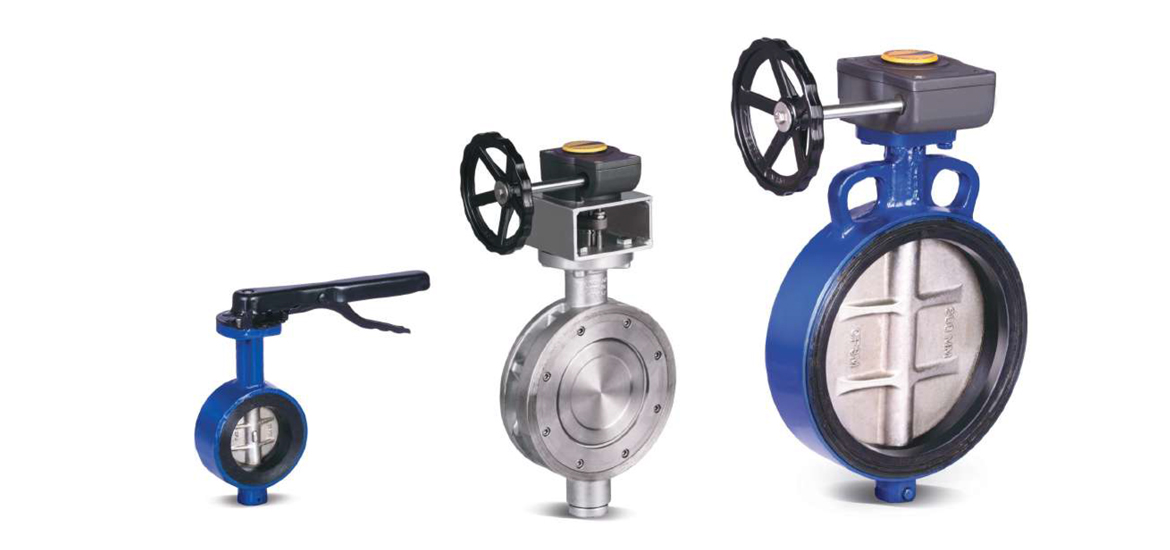

Pneucon Butterfly Valve, with integrally moulded elastomers body sleeve are designed for longer life and trouble free performance. Integrally moulded sleeve ensures perfect resistance against friction between the disc and the sleeve.
SPECIFICATION
- Valve Size: 1 ½” (40 mm) to 36″ (900 mm)
- Rating: ANSI / BS 125# / 150#
- Design: Centric Disc, Single to Triple Offset Disc
- Fully Lined & Unlined Body
- End Connection: Wafer, Lugged & Double Flanged

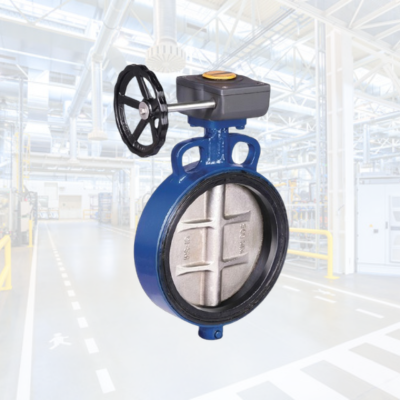

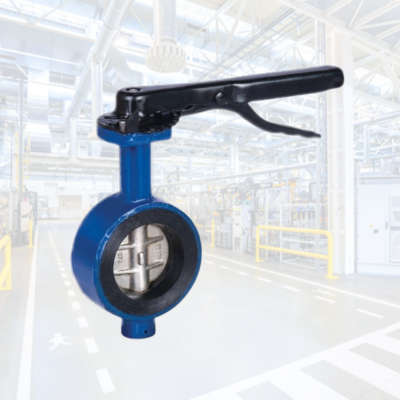

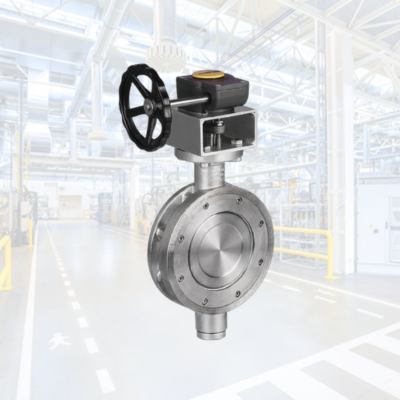

- Operation: Wrench / Manual Gear
- Port Opening: Full
- Seat: Nitrile /EPDM / Neoprene / Silicon / Viton etc.
- Disc: Solid Dual Shaft / Single Shaft
- Design Code : API – 609 / BS – 5155
- Testing : API 598
Related Products

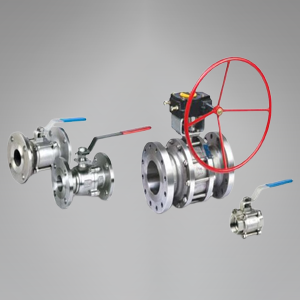

Ball Valve With Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / API-6D / API-607 / API-6FA |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B16.5 |
| Face To Face Std | ASME B16.10 |
| Testing Std | API 598 |
Flush Bottom Ball Valves With Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / BS 5351 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B 16.5 |
| Face To Face Std | MANUFACTURING STD |
| Testing Std | API - 598 / BS EN 12266 / BS 6755-PART 1 |
3- Way Ball Valve with Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B16.5 |
| Face To Face Std | MANUFACTURING STD |
| Testing Std | API - 598 |
PFA/FEP Lined Ball Valve with Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / BS 5351 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B 16.5 |
| Face To Face Std | ASME B16.10 |
| Testing Std | API - 598 |
Manual Butterfly Valve
Pneucon Automation Private Limited are experienced Manual Butterfly Valve Manufacturers, Suppliers and Exporters in Mumbai, Navi Mumbai, Thane and India, providing reliable flow control solutions for industrial applications. A Manual Butterfly Valve is designed to regulate or isolate the flow of liquids, gases and other compatible media through pipelines using a manually operated handle or lever mechanism. Its compact construction, simple operating mechanism and efficient shut-off performance make it suitable for a wide range of industrial piping systems. Pneucon Automation Private Limited focuses on providing dependable Manual Butterfly Valve solutions designed according to application requirements, pipeline specifications and operating conditions. These valves can be used across process industries where convenient manual flow control, space efficiency and operational reliability are important.
As Manual Butterfly Valve Manufacturers, Suppliers and Exporters in Mumbai, Navi Mumbai, Thane and India, Pneucon Automation Private Limited provides valves suitable for different industrial flow control requirements. Manual Butterfly Valves can be integrated into water treatment systems, chemical processing plants, manufacturing facilities, HVAC systems, utilities, process pipelines and other industrial installations. Their lightweight and compact design can simplify installation and maintenance compared with larger conventional valve arrangements. The manually operated mechanism enables operators to control pipeline flow without requiring pneumatic or electric actuation. Pneucon Automation Private Limited supplies Manual Butterfly Valves with suitable materials, sizes and configurations according to project and application requirements, supporting dependable operation and efficient pipeline management.
Advantages of Manual Butterfly Valve
- Compact Construction: Requires comparatively less installation space in industrial piping systems.
- Simple Manual Operation: The handle or lever mechanism provides straightforward control of pipeline flow.
- Efficient Flow Isolation: Suitable for opening, closing and isolating sections of a pipeline.
- Easy Installation: Compact and lightweight construction can simplify handling and installation.
- Low Maintenance Requirement: Simple mechanical construction can make routine inspection and maintenance convenient.
Benefits of Manual Butterfly Valve
- Reliable Flow Control: Provides convenient manual regulation and isolation of compatible process media.
- Space Saving: The compact valve design is suitable for installations where available space is limited.
- Operational Convenience: Manual operation allows users to control the valve directly at the installation point.
- Versatile Industrial Use: Can be used across multiple industries and pipeline applications.
- Cost-Effective Operation: Does not require pneumatic or electrical actuation for basic manual operation.
Applications of Manual Butterfly Valve
- Water Treatment Plants: Used for controlling and isolating water flow in treatment and distribution systems.
- Chemical Processing: Suitable for flow isolation in compatible chemical process pipelines.
- HVAC Systems: Used for controlling water and other compatible fluids in heating and cooling systems.
- Industrial Manufacturing Plants: Applied in utility and process piping systems for flow management.
- Process Industries: Used in pipelines requiring convenient manual opening, closing and isolation.
Features of Manual Butterfly Valve
- Manual Lever or Handle Operation: Provides direct mechanical control of the valve.
- Compact Design: Suitable for piping systems with limited installation space.
- Industrial Construction: Available in configurations designed for demanding industrial environments.
- Efficient Shut-Off: Designed to provide dependable pipeline isolation when properly selected and installed.
- Multiple Size and Material Options: Configuration can be selected according to pipeline and application requirements.
Frequently Asked Questions
1. What is a Manual Butterfly Valve?
A Manual Butterfly Valve is a quarter-turn valve used to control or isolate fluid flow in a pipeline. It is operated manually through a handle, lever or suitable manual operating mechanism.
2. Where are Manual Butterfly Valves used?
Manual Butterfly Valves are commonly used in water treatment, HVAC, chemical processing, manufacturing, utilities and various industrial process piping systems.
3. Why choose Pneucon Automation for Manual Butterfly Valves?
Pneucon Automation Private Limited provides Manual Butterfly Valve solutions for industrial flow control requirements and serves customers as Manufacturers, Suppliers and Exporters in Mumbai, Navi Mumbai, Thane and India.
