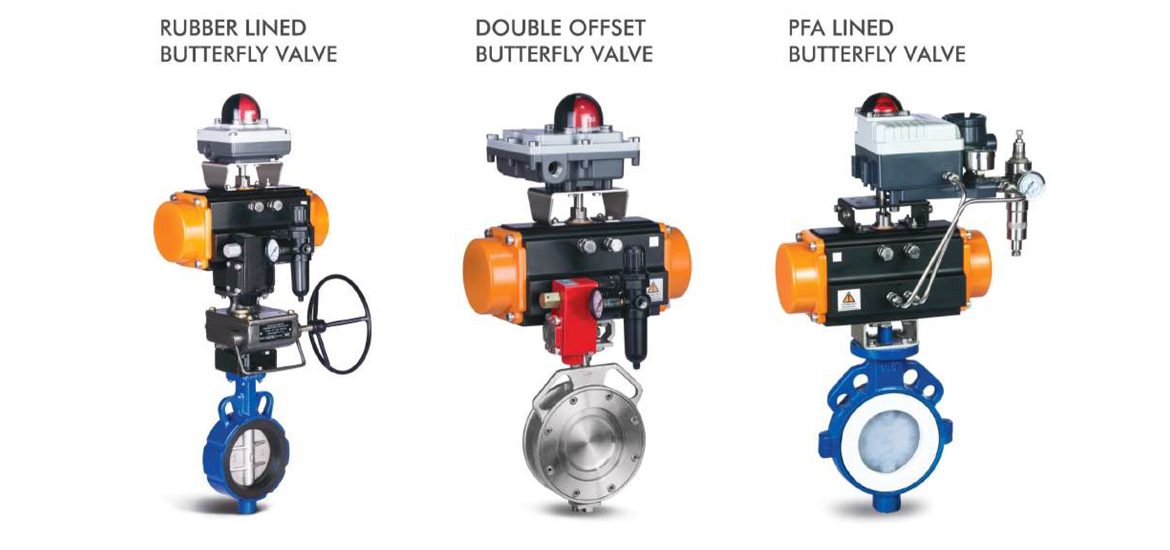

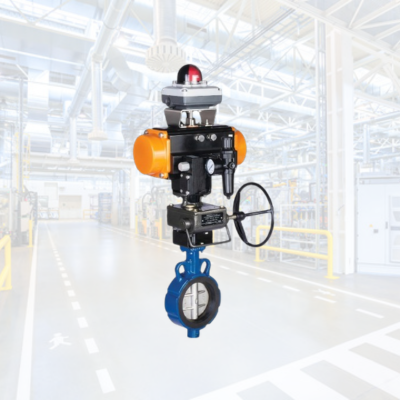

Rubber Lined Butterfly Valve

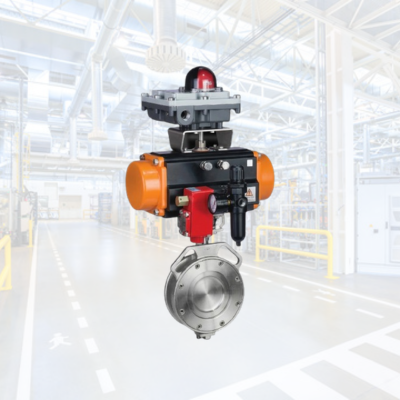

Double Offset Butterfly Valve

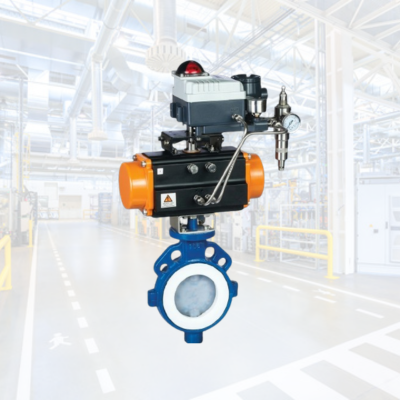

PFA Lined Butterfly Valve
Butterfly Valve
- Designed and manufactured as per BS
- 5155, API 609, MSS SP 67 & ISO 5752
Features
- Bi Directional zero leakage Butterfly Valve
- An Extremely negligible backlash between Stem & disc due to square drive
- Butterfly Valves (Lined) are designed to fit without gaskets between flanges drilled to ANSI 125 #, ANSI 150#,DIN., ND 10, 16, BS 10 Table D, E and F.
- 100% Factory tested under Water /Air / Vacuum before the valve is Packed and shipped.
- 360° Disc Rotation.
Specification
- Valve Size: 1 ½” (40 mm) to 36″ (900 mm)
- Rating: ANSI / BS 125# / 150#.
- Design: Centric Disc, Single to Triple Offset Disc Fully Lined & Unlined Body.
- End Connection: Wafer, Lugged & Double Flanged.
- Operation: Pneumatic.
- Port Opening: Full.
- Seat: Nitrile EPDM / Neoprene / Silicon /Viton etc.
- Disc: Solid Dual Shaft / Single Shaft.
- Design Code: API – 609 / BS – 5155.
- Testing: API 598
Related Products
Ball Valve With Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / API-6D / API-607 / API-6FA |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B16.5 |
| Face To Face Std | ASME B16.10 |
| Testing Std | API 598 |
Flush Bottom Ball Valves With Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / BS 5351 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B 16.5 |
| Face To Face Std | MANUFACTURING STD |
| Testing Std | API - 598 / BS EN 12266 / BS 6755-PART 1 |
3- Way Ball Valve with Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B16.5 |
| Face To Face Std | MANUFACTURING STD |
| Testing Std | API - 598 |
PFA/FEP Lined Ball Valve with Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / BS 5351 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B 16.5 |
| Face To Face Std | ASME B16.10 |
| Testing Std | API - 598 |
Butterfly Valve
Pneucon Automation Private Limited is a leading Butterfly Valve Manufacturer, Supplier and Exporter in Mumbai, Navi Mumbai, Thane and India, offering engineered butterfly valve solutions for industrial flow control applications. Butterfly Valves are compact quarter-turn valves designed for efficient isolation and regulation of fluid flow through pipelines. Pneucon develops and manufactures butterfly valve solutions for process industries, with options including manual and rotary-actuated configurations. The company's butterfly valve range is designed according to applicable industry standards and can be supplied with different body, disc, seat and end-connection configurations to suit specific operating requirements.
As experienced Butterfly Valve Manufacturers, Suppliers and Exporters in Mumbai, Navi Mumbai, Thane and India, Pneucon Automation provides valve solutions for applications requiring dependable flow isolation, controlled operation and efficient pipeline management. The butterfly valve range includes centric and offset designs, lined and unlined configurations, and wafer, lugged and double-flanged end connections. Depending on the application, available seat materials include EPDM, Nitrile, Neoprene, Silicone and Viton, while valve operation can be configured for pneumatic automation. Pneucon also states that its butterfly valves undergo factory testing before shipment, supporting consistent product performance and quality control.
Advantages of Butterfly Valve
- Compact Construction: Butterfly Valves have a compact and lightweight design compared with many conventional pipeline valves, making them suitable for space-conscious installations.
- Quick Quarter-Turn Operation: The disc rotates through approximately 90 degrees for opening and closing, allowing fast valve operation and effective flow isolation.
- Multiple Configuration Options: Butterfly Valves can be supplied in different designs, including centric, single-offset, double-offset and lined configurations, depending on application requirements.
- Flexible Installation: Wafer, lugged and double-flanged end connections provide flexibility for integration into different piping systems.
- Manual or Automated Operation: Butterfly Valves can be operated manually or integrated with rotary actuators for automated process control.
Benefits of Butterfly Valve
- Efficient Flow Control: Provides effective isolation and flow management across industrial pipeline systems.
- Easy Maintenance: The relatively simple construction can support convenient inspection, servicing and maintenance.
- Space Saving: Its compact construction makes it suitable for installations where available space is limited.
- Industrial Versatility: Butterfly Valves can be configured for different media, pressure requirements, sizes and industrial applications.
- Reliable Operation: Pneucon's butterfly valve specifications include factory testing and API 598 testing requirements for its listed butterfly valve range.
Applications of Butterfly Valve
- Water Treatment Plants: Used for isolation and flow control in water treatment and distribution systems.
- Chemical Processing Industries: Suitable for controlling and isolating process fluids in chemical plants.
- Oil & Gas Industries: Used in pipeline and process applications requiring reliable flow isolation.
- Power Generation Plants: Applied in various utility and process piping systems for controlling fluid flow.
- Process Industries: Used across industrial process applications where efficient pipeline isolation and flow management are required.
Features of Butterfly Valve
- Quarter-Turn Disc Operation: The valve uses a rotating disc mechanism for quick opening and closing.
- Multiple Valve Sizes: Pneucon's listed butterfly valve range covers sizes from 1½ inch (40 mm) to 36 inch (900 mm).
- Multiple End Connections: Available configurations include wafer, lugged and double-flanged connections.
- Different Seat Materials: Seat options listed by Pneucon include Nitrile, EPDM, Neoprene, Silicone and Viton.
- Industry Standard Design & Testing: The listed butterfly valve range references BS EN 593, API 609, IS 13095 and API 598, supporting application-specific engineering and testing requirements.
Frequently Asked Questions
1. What is a Butterfly Valve?
A Butterfly Valve is a quarter-turn industrial valve that uses a rotating disc to control, isolate or regulate fluid flow through a pipeline. It is commonly selected for its compact construction, quick operation and suitability for different industrial piping applications.
2. What types of Butterfly Valves does Pneucon Automation offer?
Pneucon Automation's butterfly valve range includes Butterfly Valve with Rotary Actuator, Manual Butterfly Valve, and configurations such as lined and offset butterfly valves. The company's product information also specifies centric, single-offset and triple-offset disc designs depending on the configuration.
3. Where can I source Butterfly Valves from Pneucon Automation?
Pneucon Automation Private Limited supplies butterfly valve solutions from its Thane, Maharashtra operation and serves customers across Mumbai, Navi Mumbai, Thane and India. The company's listed address is Plot No. 235/B, Kolshet-Balkum Road, Thane – 400607, India.
