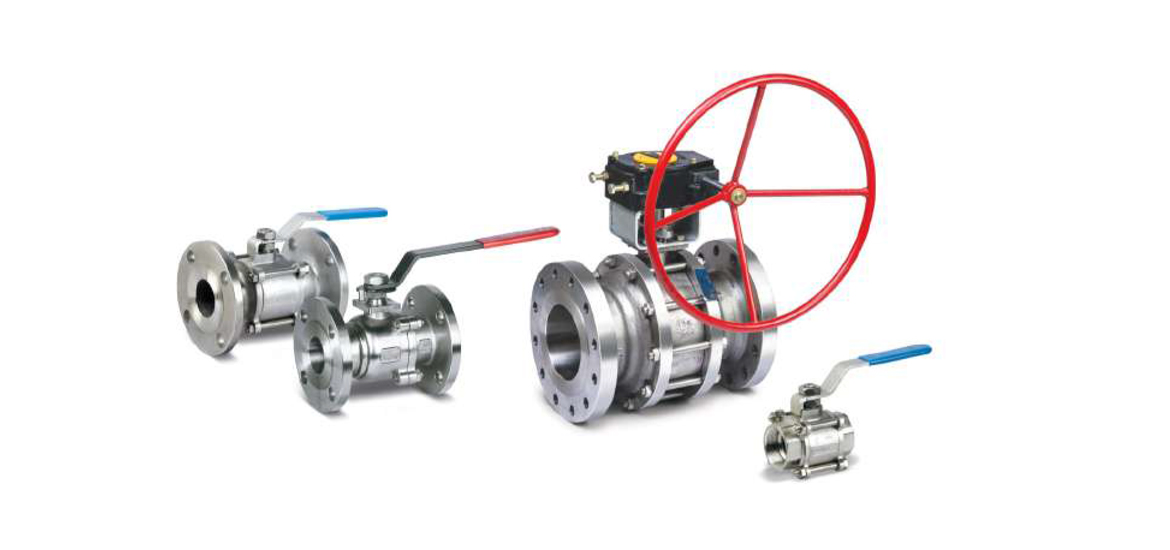

Manual Ball Valve
- Pneucon valves are designed and manufactured as per ASME B16.34/ API 6D/ BS EN 17292.These Standards Cover Pressure – Temperature ratings, minimum shell thickness, bore diameter for each size/class.
- Castings inspection as per MSS-SP 53, 54, 55, 59, 93 & 94
- Actuator mounting pad on the valve is as per ISO 5211.
- Other applicable standards
- Face to Face: ASME B 16.10
- Flange Dimension: ASME B 16.5
- Butt Welded: ASME B 16.25 /
- Valve Ends: B31.3 / B31.4 / API 6D
- Pressure Tests : API 598 / BS EN 12266 – I / API 6D.
- Fire Safety: API 607 / API 6FA / BS 6755 PART II
Related Products
Ball Valve With Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / API-6D / API-607 / API-6FA |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B16.5 |
| Face To Face Std | ASME B16.10 |
| Testing Std | API 598 |
Flush Bottom Ball Valves With Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / BS 5351 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B 16.5 |
| Face To Face Std | MANUFACTURING STD |
| Testing Std | API - 598 / BS EN 12266 / BS 6755-PART 1 |
3- Way Ball Valve with Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B16.5 |
| Face To Face Std | MANUFACTURING STD |
| Testing Std | API - 598 |
PFA/FEP Lined Ball Valve with Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / BS 5351 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B 16.5 |
| Face To Face Std | ASME B16.10 |
| Testing Std | API - 598 |
Manual Ball Valve
Pneucon Automation Private Limited are reliable Manual Ball Valve Manufacturers, Suppliers and Exporters in Mumbai, Navi Mumbai, Thane and India, offering manual valve solutions for industrial flow control and pipeline isolation applications. A Manual Ball Valve uses a rotating ball with a bore to control the passage of fluid through a pipeline. Its quarter-turn operating mechanism allows the valve to be opened or closed quickly by using a manual lever or suitable hand-operated mechanism. Manual Ball Valves are suitable for applications where direct and dependable on-off flow isolation is required without pneumatic or electric actuation. Pneucon Automation focuses on industrial valve and automation solutions designed to support efficient operation across different process environments.
As experienced Manual Ball Valve Manufacturers and Suppliers in Mumbai, Navi Mumbai and Thane, Pneucon Automation Private Limited provides valve solutions for industries where dependable shut-off, straightforward operation and convenient maintenance are important. Manual Ball Valves can be used with suitable configurations and materials according to the process requirements, media characteristics, pressure, temperature and piping arrangement. Their compact operating principle makes them suitable for a wide range of industrial installations. As Manual Ball Valve Exporters in India, Pneucon Automation serves customers looking for practical manual flow-control solutions for industrial plants, process systems, utilities and pipeline applications. Proper valve selection should be based on the required size, pressure rating, temperature, media compatibility, end connection and applicable project specifications.
Advantages of Manual Ball Valve
- Quick Quarter-Turn Operation: The manual operating mechanism allows rapid opening and closing for on-off flow isolation.
- Simple Operating Mechanism: The straightforward ball-and-stem design provides convenient manual control without requiring an external actuator.
- Reliable Flow Isolation: A properly selected and installed ball valve can provide effective shut-off for suitable industrial media and service conditions.
- Compact Valve Design: Manual ball valves can provide flow-control functionality in a relatively compact arrangement, depending on the selected configuration.
- Versatile Industrial Use: Manual ball valves are available in different configurations and materials to suit a variety of piping and process requirements.
Benefits of Manual Ball Valve
- Easy Manual Control: Operators can directly control the valve using the provided lever or operating mechanism.
- Reduced Automation Dependency: Manual operation can be useful in applications where remote or automatic actuation is not required.
- Convenient Maintenance: The relatively simple operating principle can help simplify inspection and routine maintenance procedures.
- Efficient On-Off Control: The quarter-turn mechanism enables quick transition between open and closed positions.
- Suitable for Multiple Industries: Manual Ball Valves can be incorporated into suitable water, process, chemical, utility and industrial piping systems after compatibility assessment.
Applications of Manual Ball Valve
- Water Treatment Systems: Used for isolation and flow control in suitable water-treatment and utility piping systems.
- Chemical Processing Plants: Used for manual isolation of compatible process lines where the valve material and sealing arrangement are suitable for the media.
- Pharmaceutical Industries: Used in appropriate process and utility lines where manual isolation is required.
- Oil & Gas and Petrochemical Systems: Used for suitable pipeline and process isolation applications based on pressure, temperature and media requirements.
- Industrial Utility Piping: Used in utility systems and industrial pipelines for manual shut-off and isolation.
Features of Manual Ball Valve
- Quarter-Turn Operation: Designed for quick manual opening and closing through approximately 90-degree operation.
- Ball-Based Flow Control: Uses a spherical flow-control element with a bore to regulate passage through the valve.
- Manual Lever Operation: Can be operated directly by an appropriately designed manual handle or operating mechanism.
- Industrial Valve Configurations: Can be selected in different body, bore, connection and sealing configurations according to application requirements.
- Flow Isolation Design: Suitable for on-off isolation duties when correctly selected for the process media and operating conditions.
Frequently Asked Questions
1. What is a Manual Ball Valve?
A Manual Ball Valve is a manually operated valve that uses a rotating ball with a bore to control fluid flow. Rotating the operating mechanism changes the ball position between the open and closed states, making it suitable for on-off isolation applications.
2. Where are Manual Ball Valves used?
Manual Ball Valves are used in suitable industrial piping systems, including water treatment, process industries, chemical plants, utilities, oil and gas and other applications requiring manual flow isolation. The exact valve construction should be selected according to the process media, pressure, temperature and piping requirements.
3. How do I select a Manual Ball Valve?
Selection should consider factors such as valve size, pressure rating, operating temperature, process media, body and sealing materials, bore configuration and end connection. Pneucon Automation can help determine a suitable configuration based on the application's technical requirements.
