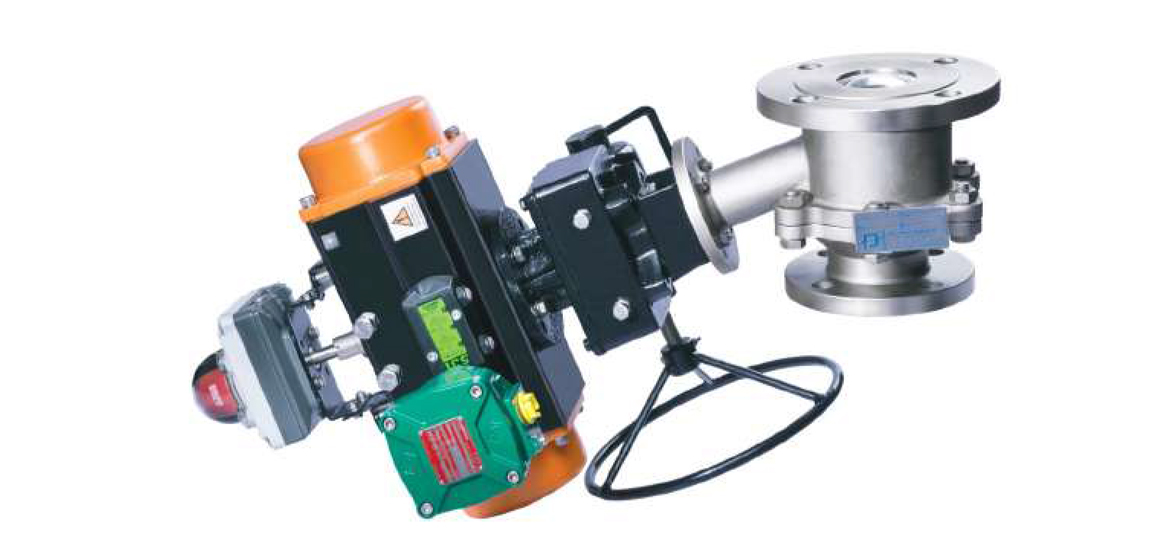

Flush Bottom Valve
- Designed and Manufactured as per BS 5351
- End Connection: ASME B 16.5
Features
- The Valves are designed to open directly in the tank,reactor for 100% Flushing or discharging the material.
- Easy Operation even under high pressure.
- Full circular passages
- Easily replaceable PTFE seats & Packing.
- The design is featured with inclined bonnet which allows the automation OR manual operation to be free form fouling with the reactor disc end.
Mounting
- Interface: ISO 5211.
- Body MOC : WCB,CF8,CF8M,CF3,CF3M(Special on Request).
- Trim MOC : CF8, CF8M,CF3,CF3M(Special on Request).
- Seat MOC : PTFE,GET,PEK(Special on Request).
- Size: ½” (15mm) to 8″ (200mm).
Related Products
Ball Valve With Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / API-6D / API-607 / API-6FA |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B16.5 |
| Face To Face Std | ASME B16.10 |
| Testing Std | API 598 |
Flush Bottom Ball Valves With Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / BS 5351 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B 16.5 |
| Face To Face Std | MANUFACTURING STD |
| Testing Std | API - 598 / BS EN 12266 / BS 6755-PART 1 |
3- Way Ball Valve with Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B16.5 |
| Face To Face Std | MANUFACTURING STD |
| Testing Std | API - 598 |
PFA/FEP Lined Ball Valve with Rotary Actuator
| Design Std / Manufacturing Std | BS EN ISO 17292 / BS 5351 |
| Mounting Std | ISO 5211 |
| Flange Std | ASME B 16.5 |
| Face To Face Std | ASME B16.10 |
| Testing Std | API - 598 |
Flush Bottom Valve
Pneucon Automation Private Limited are Flush Bottom Valve Manufacturers, Suppliers and Exporters in Mumbai, Navi Mumbai, Thane and India, offering reliable flush bottom valve solutions for industrial process applications. A Flush Bottom Valve is designed for effective bottom discharge of liquids, slurry, viscous materials, abrasive media and semi-solid materials from tanks, reactors and vessels. The valve design facilitates efficient draining while minimizing material hold-up at the bottom of the vessel, making it suitable for applications where clean and controlled discharge is important. Pneucon Flush Bottom Valves are available with different actuation arrangements and material options to suit specific process requirements.
The Flush Bottom Valve Manufacturers and Suppliers in Mumbai, Navi Mumbai, Thane and India at Pneucon Automation provide valve solutions designed for reliable shut-off, smooth discharge and industrial process automation. Pneucon's published specifications include valve sizes from approximately 40 mm to 200 mm, flanged connections, carbon steel and stainless-steel body options, PTFE seating and actuator choices including diaphragm, cylinder or electric actuation. The company also documents flush bottom ball valve configurations with rotary actuators, including options manufactured to applicable design and mounting standards. These characteristics make Flush Bottom Valves suitable for chemical, pharmaceutical, food processing, water treatment and other process industries where controlled tank-bottom discharge is required.
Advantages of Flush Bottom Valve
- Zero or Low Material Hold-Up: The flush design helps minimize residual material at the bottom of tanks and vessels.
- Efficient Bottom Discharge: Designed for effective draining of liquids, slurry, viscous and semi-solid media.
- Reliable Shut-Off: Suitable seating arrangements support dependable on-off operation.
- Flexible Actuation: Configurations can be provided with diaphragm, cylinder, electric or rotary actuator arrangements depending on the valve design.
- Industrial Material Options: Body, trim and seat materials can be selected according to process and media requirements.
Benefits of Flush Bottom Valve
- Improved Process Efficiency: Supports quick and controlled discharge from the bottom of tanks and reactors.
- Reduced Product Retention: Flush bottom construction helps reduce material accumulation in the vessel bottom area.
- Suitable for Difficult Media: Can be used for abrasive, slurry, viscous and semi-solid process materials.
- Easy Integration with Automation: Actuated configurations can be integrated into automated process systems.
- Versatile Industrial Use: Suitable for a wide range of process applications where bottom outlet control is required.
Applications of Flush Bottom Valve
- Chemical Processing Plants: Bottom discharge of chemicals and process fluids from reactors and vessels.
- Pharmaceutical Industries: Controlled discharge from process vessels and manufacturing equipment.
- Food & Beverage Processing: Bottom draining and discharge applications where hygienic process control is required.
- Water & Wastewater Treatment: Drainage and controlled discharge of process liquids and slurry.
- Industrial Reactors & Storage Vessels: Bottom outlet applications involving liquids, viscous materials, slurry and semi-solid media.
Features of Flush Bottom Valve
- Flush Bottom Design: Designed to minimize hold-up at the bottom pad of the tank.
- Multiple Disc Configurations: Available with disc opening into the tank or opening inside the valve body.
- Wide Material Selection: Options include carbon steel, stainless steel and other materials according to specifications.
- Replaceable Seating Options: PTFE and other seating configurations are available depending on the design.
- Actuator Compatibility: Can be configured with pneumatic, diaphragm, cylinder, electric or rotary actuation depending on the model.
Frequently Asked Questions
1. What is a Flush Bottom Valve?
A Flush Bottom Valve is an industrial valve installed at the bottom of a tank, vessel or reactor to facilitate controlled discharge of liquids, slurry, viscous materials and semi-solid media while helping minimize material hold-up.
2. Where are Flush Bottom Valves used?
Flush Bottom Valves are used in tanks, reactors and vessels across industries such as chemical processing, pharmaceuticals, food processing, water treatment and other process industries requiring controlled bottom discharge.
3. What actuation options are available for Flush Bottom Valves?
Depending on the model and application, Flush Bottom Valves can be supplied with diaphragm, cylinder or electric actuators. Pneucon also documents Flush Bottom Ball Valve configurations with rotary actuators for automated valve operation.
